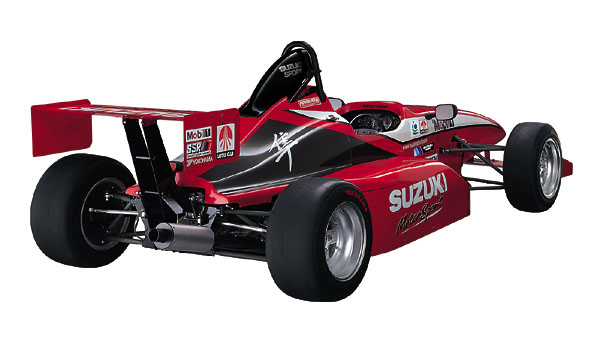

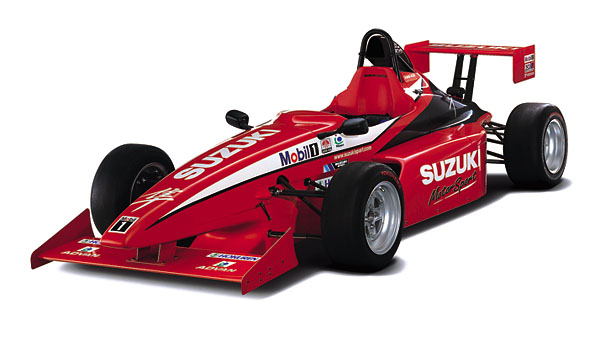

--Formula Suzuki Hayabusa






600x340pix

600x340pix


600x395pix

[Features]
-Powered by Suzuki's ultimate sport GSX1300R "Hayabusa" engine.
-Using the genuine Suzuki's motorcycle and automobile parts. Making also the maintenance cost low.
-There is no other 4 wheeler which can give you the exciting power feel and exhaust sound.
-It is the top category of the Suzuki One Make Race Series and the performance matches to the top Formula categories.

[Body Layout]
FRP cowl is attached to the Suzuki Sport design steel space frame. To get excellent weight distribution, the GSX1300R "Hayabusa" engine is placed in mid ship longitudinal. Suspension is inboard type allowing to make less drag body shape and to create detail set up.

[Engine]
Suzuki GSX1300R "Hayabusa" engine and gearbox is installed. Maximum horsepower 129kW(175PS)/9,800rpm, maximum torque 138N-m(14.1kg-m)/7,000rpm. Liquid cooled four stroke in-line 4 DOHC 16 valves engine will rev up to 11,000 rpm.

[6 speed sequential gearbox]
Like the other competition cars, it has 6-speed sequential gearbox. Short shift travel making quick stable shift. The match to the engine is superb which will give out high performance from bottom to top end revolution.



Specification
Type FH20R
Body
Frame Suzuki Sport steel space frame
Body cowl FRP
Body color FRP white gel coated finish
Dimension
Length 4,050mm
Width 1,680mm
Height 1,100mm
Wheelbase 2,320mm
Tread F/1,500mm R/1,430mm
Weight 430kg
Engine
Type W701 Liquid-cooled inline 4 DOHC 16 valves
Bore x stroke 81.0mm x 63.0mm
Capacity 1,299cm3
Compression ratio 11.0:1
Fuel delivery system EPI (Electronic Petrol Injection)
Maximum horsepower 129kW(175PS)/9,800rpm
Maximum torque 138N-m(14.1kg-m)/7,000rpm
Fuel tank 25liters (FT3)
Power train
Transmission 6-speed sequential
Suspension
Type F/R Double wishbone
Brake
Type F/Ventilated disc R/Disc
Tire&Wheel
Tire F/R 175/80R15
Racing tire F:180/50VR13 R:240/45VR13 (option)
Wheel F/R 15 x 6.5J
Racing wheels F:13 x 8.0J R:13 x 10.0J (option)

@
